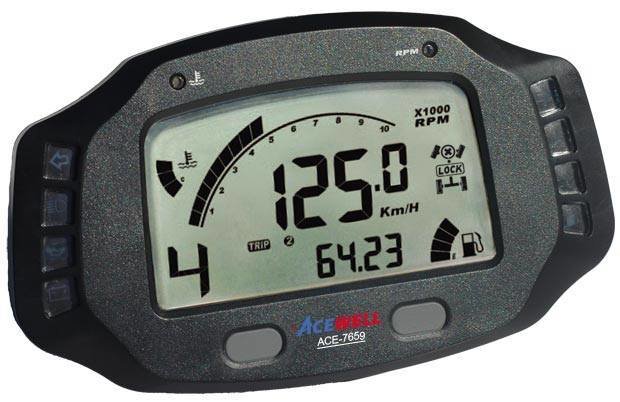

Acewell 7859 Digital Dash

NEW- Packs a ton of features and functionality into a small package. The perfect product to add digital dashboard functionality to any vehicle.

• Speedometer displays MPH or Km/h with recall of maximum speed
• Bar tachometer with option for either 500-10,000 RPM or 1,000-20,000 RPM display with recall of maximum RPM
• Programmable shift light
• Odometer displays 0-999.99 miles or kilometers
• 2 trip meters that display 0-999.99 miles or kilometers each
• Clock with option to display either 12 or 24 hours clock
• Temperature meter capable of displaying Farenheit or Celcius with recall of maximum temperature
• Programmable temperature warning lights
• Fuel Gauge (bar style)
• Digital display gear indicator that displays up to 8 gears (N, P, R, H, L, 1, 2,...8)
• Battery Meter that displays 8.0 - 18.0 Volts
• Hour Meter to record engine running time
• Programmable maintenance reminder
• Lap timer that is capable of recording up to 99 laps - includes remote to start lap timer
• Distance timer that is capable of timing 1/4 mile
• Accelerator timer (0-60 MPH)
• Deceleration timer (60-0 MPH)
• Complete set of indicator lights including turn signals, lights (on and high beam indicator), low battery warning and more, oil warning.
• Backlight can be switched with sidelights as per IVA / MSVA / MOT requirements
• Warning lamps meet requirements of IVA / MSVA / MOT test
• 4x4 symbol can be switched on when 4 wheel or diff-lock drive selected, switched off by default and not visible
• Compatible with both car and motorcycle engined vehicles
• Speed input can connect to included magnet/reed switch sensor or optional cable drive adaptor or directly to many speed sensors fitted to automotive gearboxes
• Gear indicator calculates gear by comparing speed and RPM on manual gearbox cars, so no additional sensors are required
• 100% water resistant so can be fitted in beach buggies without worrying about rain damage
• Includes RPM sensing wire, speed sensor, temperature sensor, and generic wiring harness
• Voltage warning lamp can be configured for the voltages to come on and off to suit any vehicle
• Programmable Fuel Gauge which can be set for 10-990 ohms resistance for both full and empty so that it can connect to almost any sender.
• E-Marked for road vehicle use within Europe
• Size: 6-7/8" x 4" x 1-1/4" or 170mm x 100.5mm x 30mm

Includes:
